Smart pyrometers for factory automation

Source:Ringier Trade Media Release Date:2018-07-05 306
MetalworkingPlastics & Rubber
Add to Favorites
Fluke Process Instruments has launched the Thermalert 4.0 spot pyrometer series for automatic noncontact temperature monitoring between -40 °C and 2,250 °C.

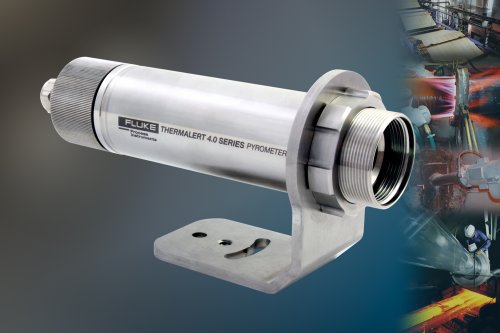

Illustration: The noncontact infrared thermometers feature superior optical resolution and save service costs

The series currently comprises 13 models with varied spectral responses, including dedicated sensors for metals, glass, and plastics products. A large choice of optics is available for long and short focal distances. Due to the outstanding ambient temperature range of -20 °C to 85 °C, more measuring points can be set up without cooling accessories and without installing cooling media supplies. Accordingly, there is no danger of leakage and contamination of critical processes. The rugged IP65 infrared thermometers exhibit best-in-class repeatabilities, response times, and accuracies. The system software supports remote configuration, monitoring, field calibration, and firmware updates. These functions can significantly lower service costs and time spent on setup and troubleshooting. Plug & play operation further facilitates installation and maintenance. The sensors feature galvanically isolated analog and RS485 interfaces. Up to 32 devices can be connected within an RS485 network. The manufacturer will keep on adding fieldbus and feature options in future. Retrofit of existing measuring points has been made as easy as possible. The new sensors can be fitted in fixtures for Endurance, Raytek Thermalert TX, and Raytek XR pyrometers. Adapters are available for use with Ircon Modline 4 and Raytek MM fixtures.

For more information, please visit www.flukeprocessinstruments.com
